Collecting, parsing, and forwarding syslog logs

Syslog is a standard protocol that network devices, operating systems, and applications use to log various system events and messages. Like any other log type, you can send syslog formatted logs to a central log server for further analysis, troubleshooting, auditing, or storage purposes. Syslog messages typically include information about the message’s source, the event’s severity level, and a timestamp.

NXLog Agent can collect, generate, and forward log entries in various syslog formats. NXLog Agent has a dedicated extension module to provide functions for parsing syslog messages. With its plethora of syslog support, NXLog Agent is well suited to consolidate any syslog events, whether syslog Windows events or Linux syslog. With all its capabilities, you can even look at NXLog as a fully featured syslog server. This section describes the different syslog protocols and discusses how to use them with NXLog Agent.

BSD syslog (RFC 3164)

The original syslog was written for the Sendmail open-source email server in the 1980s. It was later adopted by many other applications, has been implemented across many operating systems, and became the standard logging system for Unix-style systems. There was no authoritative publication about syslog until 2001 when the Internet Engineering Task Force (IETF) published informational RFC 3164, which described the "observed behavior" among implementations. Today, modern implementations follow RFC 3164, which attempts to accommodate the many older implementations. Still, many undocumented variations exist among the BSD syslog protocols implemented by various applications and devices.

BSD syslog example
<30>Nov 21 11:40:27 myserver sshd[26459]: Accepted publickey for john from 192.168.1.1 port 41193 ssh2

BSD syslog defines both the log entry format and the transport. The message format is free-form, allowing the payload to be JSON or another structured data format.

BSD syslog format

BSD syslog uses a simple format comprised of three parts.

Base BSD syslog format
<PRI>HEADER MSG
While this is the common and recommended format for a BSD syslog message, there are no set requirements, and a device may send a BSD syslog log message containing only a free-form message without PRI or HEADER parts.

The PRI part, or "priority", is calculated from the facility and severity codes. The facility code indicates the type of program that generated the message, and the severity code indicates the message’s severity (see the Syslog facilities and Syslog severities tables below). The priority code is calculated by multiplying the facility code by eight and then adding the severity code.

The PRI part is not written to file by many syslog loggers. In that case, each log entry begins with the HEADER.

The HEADER part contains two fields: TIMESTAMP and HOSTNAME. The TIMESTAMP provides the local time when the message was generated in Mmm dd hh:mm:ss format, with no year or time zone specified; the HOSTNAME is the host’s name where the message was generated.

The MSG part contains two fields: TAG and CONTENT. The TAG is the name of the program or process that generated the message and contains only alphanumeric characters. Any other character will represent the beginning of the CONTENT field. The CONTENT field often includes the process ID enclosed by brackets ([]), a colon (:), a space, and then the actual message. In the log sample above, the MSG part begins with myserver sshd[26459]: Accepted publickey; in this case, the TAG is ssh, and the CONTENT field starts with [26459]. The CONTENT field can contain only ASCII printable characters (32-126).

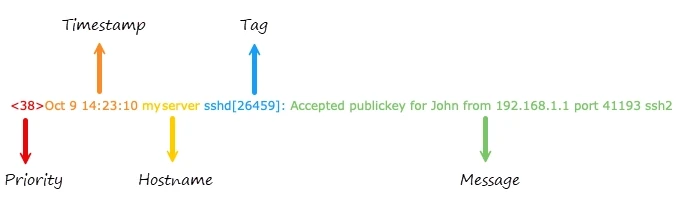

Commonly used fields in the BSD syslog format
<PRI>TIMESTAMP HOSTNAME TAG[PID]: MESSAGE
Table 1. Syslog facilities
Facility Code Description

0

kernel messages

1

user-level messages

2

mail system

3

system daemons

4

security/authorization messages

5

messages generated internally by syslogd

6

line printer subsystem

7

network news subsystem

8

UUCP subsystem

9

clock daemon

10

security/authorization messages

11

FTP daemon

12

NTP subsystem

13

log audit

14

log alert

15

scheduling daemon

16

local use 0 (local0)

17

local use 1 (local1)

18

local use 2 (local2)

19

local use 3 (local3)

20

local use 4 (local4)

21

local use 5 (local5)

22

local use 6 (local6)

23

local use 7 (local7)

Table 2. Syslog severities
Severity Code Description

0

Emergency: system is unusable

1

Alert: action must be taken immediately

2

Critical: critical conditions

3

Error: error conditions

4

Warning: warning conditions

5

Notice: normal but significant condition

6

Informational :informational messages

7

Debug: debug-level messages

BSD syslog transport

According to RFC 3164, the BSD syslog protocol uses UDP as its transport layer. Each UDP packet carries a single log entry. BSD syslog implementations often also support plain TCP and TLS transports, though these are not covered by RFC 3164.

Disadvantages of BSD syslog

There are several disadvantages associated with the BSD syslog protocol.

  • The transport defined by RFC 3164 uses UDP and provides no mechanism to ensure reliable log delivery, integrity, or confidentiality of log messages.

  • Many undocumented variations exist among implementations.

  • The timestamp indicates neither the year nor the timezone and does not provide precision greater than the second.

  • The PRI field (and, therefore, the facility and severity codes) are not retained by many syslog loggers when writing to log files.

  • The entire length of the log entry is limited to 1024 bytes.

  • Only ASCII characters 32-126 are allowed, with no Unicode or line breaks.

IETF syslog (RFC 5424-5426)

In 2009, the IETF released RFC 5424, 5425, and 5426 as "Proposed Standards" intended to replace the "legacy" BSD syslog. RFC 5425 includes a timestamp with year, timezone, and fractional seconds; provides a "structured data" field for key-value pairs; and offers UTF-8 encoding. RFC 5425 defines the use of TLS transport and supports multi-line log messages. RFC 5426 describes the use of UDP transport.

IETF syslog example
<165>1 2003-10-11T22:14:15.003Z mymachine.example.com evntslog - ID47 [exampleSDID@32473 iut="3" eventSource="Application" eventID="1011"] An application event log entry...

IETF syslog format

IETF syslog uses a base format similar to that of BSD syslog.

Base IETF syslog format
HEADER STRUCTURED-DATA MSG

The HEADER part contains seven fields.

  • PRI: message priority (same as BSD syslog)

  • VERSION: syslog format version (always "1" for RFC 5424 logs)

  • TIMESTAMP: derived from RFC 3339 (YYYY-MM-DDTHH:MM:SS.000000Z, or with the time zone specified)

  • HOSTNAME

  • APP-NAME: device or application that generated the message

  • PROCID: ID of the process that generated the message

  • MSGID: message type (for example, "TCPIN" for incoming TCP traffic and "TCPOUT" for outgoing)

The PRI field is not written to file by many syslog loggers. In that case, each log entry begins with the VERSION field.

The STRUCTURED-DATA part is optional. If it is omitted, then a hyphen acts as a placeholder. Otherwise, it is surrounded by brackets. It contains an ID of the block and a list of space-separated "key=value" pairs.

The MSG part is optional and contains a free-form, single-line message. If the message is encoded in UTF-8, then it may be preceded by a Unicode byte order mark (BOM).

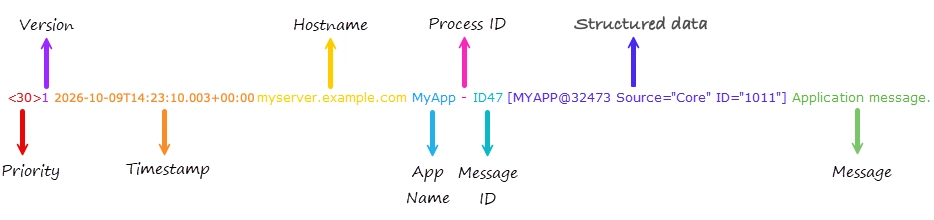

Fields in the IETF syslog format
<PRI>VERSION TIMESTAMP HOSTNAME APP-NAME PROCID MSGID [SD-ID STRUCTURED-DATA] MESSAGE

IETF syslog transport

IETF syslog can use UDP, plain TCP, or TLS transport. UDP transport is described by RFC 5426, and TLS transport by RFC 5425.

RFC 5425 also documents the octet-framing method used for TLS transport and provides support for multi-line messages. Octet-framing can also be used with plain TCP; TLS is not required. The message is prefixed with the length, as shown in the following example of the raw data sent over TCP/TLS.

Syslog example with octet-framing
101 <13>1 2012-01-01T17:15:52.873750+01:00 myhost - - - [NXLOG@14506 TestField="test value"] test message

IETF syslog is commonly transferred without octet-framing over TCP or TLS. In this case, the newline (\n) character is used as the record separator, similar to how BSD syslog is transferred over TCP or TLS.

Collecting and parsing syslog

NXLog Agent can be configured to collect syslog logs by:

  • Reading syslog files written by another local syslog agent.

  • Collecting syslog via the local /dev/log Unix domain socket.

  • Receiving syslog over the network (via UDP, TCP, or TLS).

Reading syslog files

Configuring NXLog Agent to read syslog from a file allows another local syslog agent to continue its logging operations as before. NXLog Agent will likely not have access to the facility and severity codes because most syslog loggers do not write the PRI field to log files.

Ensure NXLog Agent is permitted to read log files in /var/log. See Reading Rsyslog log files for more information.

Example 1. Reading syslog from file

This configuration reads log messages from files and parses them using the parse_syslog() procedure.

nxlog.conf
<Extension _syslog>
    Module    xm_syslog
</Extension>

<Input in>
    Module    im_file
    File      '/var/log/messages'
    Exec      parse_syslog();
</Input>
The parse_syslog() procedure parses the log entry as either BSD or IETF format (the parse_syslog_bsd() and parse_syslog_ietf() procedures can be used alternatively).

Collecting syslog via /dev/log

Many applications support logging by sending log messages to the /dev/log Unix domain socket. It is the responsibility of the system logger to accept these messages and then store them as configured. NXLog Agent can receive logs sent to the /dev/log Unix domain socket instead of the stock syslog logger.

  1. Configure NXLog Agent (see the example below).

  2. Disable the stock syslog agent’s collection of /dev/log messages if necessary. See also Replacing Rsyslog. Either

    • Disable the service entirely (for example, systemctl --now disable rsyslogd) or

    • Modify the configuration to disable reading from /dev/log (for example, remove $ModLoad imuxsock from /etc/rsyslog.conf and restart Rsyslog).

  3. Restart NXLog Agent.

Example 2. Collecting syslog from /dev/log

With this configuration, NXLog Agent uses the im_uds module to read messages from the /dev/log and the parse_syslog() procedure to parse them.

FlowControl should be disabled for collecting from /dev/log. Otherwise, the syslog() system call will block if the Output queue becomes full, resulting in an unresponsive system.
nxlog.conf
<Extension _syslog>
    Module         xm_syslog
</Extension>

<Input in>
    Module         im_uds
    UDS            /dev/log
    FlowControl    FALSE
    Exec           parse_syslog();
</Input>

Collecting syslog via UDP, TCP, or TLS

NXLog Agent can be configured to listen on a port and collect syslog over the network. A port can be used to receive messages with UDP, TCP, or TLS transport. The local syslog agent may already be configured to listen on port 514 for UDP log messages from local applications.

  1. Configure NXLog Agent with im_udp, im_tcp, or im_ssl. See the examples below.

  2. For NXLog Agent to listen for messages on port 514, the local syslog agent must not be listening on that port number. It may be necessary to do either of the following:

    • Disable the service entirely (for example, systemctl disable rsyslogd).

    • Modify the configuration to disable listening on port 514 (for example, remove input(type="imudp" port="514") from /etc/rsyslog.conf and restart Rsyslog).

  3. Restart NXLog Agent.

Example 3. Receiving syslog via UDP

This configuration accepts either BSD or IETF syslog from the local system only, via UDP.

The UDP transport can lose log entries and is therefore not recommended for receiving logs over the network.
nxlog.conf
<Extension _syslog>
    Module        xm_syslog
</Extension>

<Input in>
    Module        im_udp
    ListenAddr    localhost:514
    Exec          parse_syslog();
</Input>
Example 4. Receiving syslog via TCP

This configuration accepts either BSD or IETF syslog via TCP without supporting octet-framing.

nxlog.conf
<Extension _syslog>
    Module        xm_syslog
</Extension>

<Input in>
    Module        im_tcp
    ListenAddr    0.0.0.0:1514
    Exec          parse_syslog();
</Input>
Example 5. Receiving IETF syslog via TCP with octet-framing

This configuration accepts IETF syslog via TCP, with support for octet-framing.

Though this is for plain TCP, the Syslog_TLS directive is required because it refers to the octet-framing method described by RFC 5425.
nxlog.conf
<Extension _syslog>
    Module        xm_syslog
</Extension>

<Input in>
    Module        im_tcp
    ListenAddr    0.0.0.0:1514
    InputType     Syslog_TLS
    Exec          parse_syslog_ietf();
</Input>
Example 6. Receiving IETF syslog via TLS

This configuration accepts IETF syslog via TLS, with support for octet-framing.

nxlog.conf
<Extension _syslog>
    Module         xm_syslog
</Extension>

<Input in>
    Module         im_ssl
    ListenAddr     0.0.0.0:6514
    CAFile         %CERTDIR%/ca.pem
    CertFile       %CERTDIR%/client-cert.pem
    CertKeyFile    %CERTDIR%/client-key.pem
    InputType      Syslog_TLS
    Exec           parse_syslog_ietf();
</Input>

Filtering syslog

Filtering syslog messages means keeping or discarding messages based on their contents. Filtering can be carried out using conditional statements and values from event record fields. For more details about fields, see NXLog Agent log records and fields in the NXLog Platform User Guide.

Example 7. Filtering syslog messages by severity

The configuration below reads user-space messages from the /dev/log socket using the im_uds module. In the Exec block, messages are parsed using the parse_syslog_bsd() procedure from the xm_syslog module.

Using conditional statement values from the $SyslogSeverityValue field are checked, and messages with severity over 6 are discarded using the drop() procedure.

The remaining messages are converted to JSON using to_json() procedure from the xm_json module.

nxlog.conf
<Extension json>
    Module    xm_json
</Extension>

<Input from_uds>
    Module    im_uds
    UDS       /dev/log
    <Exec>
        parse_syslog_bsd();
        if NOT ($SyslogSeverityValue < 6)
        {
            drop();
        }
        to_json();
    </Exec>
</Input>

Messages can also be filtered using the values of a group of fields.

Example 8. Filtering syslog by various values

The configuration below reads log messages from the /dev/log socket using the im_uds module. In the Exec block, messages are parsed using the parse_syslog_bsd() procedure from the xm_syslog module.

Using the conditional statement, complex filtering is carried out as per the following parameters:

  • Severity, using the value from the $SyslogSeverityValue field.

  • Facility, using the value from the $SyslogFacility field.

  • Source name, using the value from the $SourceName field.

If a message does not meet at least one filtering condition, it is discarded using the drop() procedure. Otherwise, it is converted to JSON using to_json() procedure from the xm_json module.

nxlog.conf
<Extension json>
    Module    xm_json
</Extension>

<Input from_uds>
    Module    im_uds
    UDS       /dev/log
    <Exec>
        parse_syslog_bsd();
        if NOT (
               ($SyslogSeverityValue < 6) OR
               ($SyslogFacility IN ('AUTHPRIV', 'AUTH', 'MAIL', 'CRON')) OR
               ($SourceName IN ('apt','nxlog','osqueryd'))
               )
        {
            drop();
        }
        to_json();
    </Exec>
</Input>

Syslog messages can be filtered by the $Message field values using regular expressions.

Using regular regular expressions, syslog messages can be filtered by the $Message field values.

Example 9. Filtering syslog by the message field

The configuration below reads log messages from the Linux kernel using the im_kernel module. In the Exec block, messages are parsed using the parse_syslog_bsd() procedure from the xm_syslog module.

Using the conditional statement, messages without the mount options string in the $Message field are discarded using the drop() procedure.

The remaining messages are converted to JSON using to_json() procedure from the xm_json module.

nxlog.conf
<Extension json>
    Module    xm_json
</Extension>

<Input from_kernel>
    Module    im_kernel
    <Exec>
        parse_syslog_bsd();
        if NOT ($Message =~ /mount options/)
        {
            drop();
        }
        to_json();
    </Exec>
</Input>

Generating syslog messages

NXLog Agent can be configured to generate BSD or IETF syslog and:

  • Write it to file.

  • Send messages to the local syslog daemon via the /dev/log Unix domain socket.

  • Forward messages to another destination over the network (via UDP, TCP, or TLS).

In each case, the to_syslog_bsd() and to_syslog_ietf() procedures generate the $raw_event field from the corresponding fields in the event record.

Writing syslog to file

The om_file module is used to write logs to file.

Example 10. Writing BSD syslog to file

This configuration write logs to the specified file in the BSD syslog format.

nxlog.conf
<Extension _syslog>
    Module    xm_syslog
</Extension>

<Output out>
    Module    om_file
    File      "/var/log/syslog"
    Exec      to_syslog_bsd();
</Output>

NXLog Agent can be configured to write BSD syslog to a file without the PRI part, emulating traditional syslog implementations.

Example 11. Writing BSD syslog without the PRI

This configuration includes a regular expression for removing the PRI part from the $raw_event field after the to_syslog_bsd() procedure generates it.

nxlog.conf
<Extension _syslog>
    Module    xm_syslog
</Extension>

<Output out>
    Module    om_file
    File      "/var/log/syslog"
    Exec      to_syslog_bsd(); $raw_event =~ s/^\<\d+\>//;
</Output>

Sending syslog to the local syslog daemon via /dev/log

The om_uds module can be used for sending logs to a Unix domain socket.

Example 12. Sending syslog to /dev/log

This configuration sends BSD Syslog to the Syslog daemon via /dev/log.

nxlog.conf
<Extension _syslog>
    Module    xm_syslog
</Extension>

<Output out>
    Module    om_uds
    UDS       /dev/log
    Exec      to_syslog_bsd();
</Output>

Forwarding syslog to a remote logger via UDP, TCP, or TLS

The om_udp, om_tcp, and om_ssl modules can be used for sending syslog over the network.

Example 13. Forwarding BSD syslog via UDP

This configuration sends logs in BSD syslog format to the specified host via UDP port 514.

nxlog.conf
<Extension _syslog>
    Module    xm_syslog
</Extension>

<Output out>
    Module    om_udp
    Host      192.168.1.1:514
    Exec      to_syslog_bsd();
</Output>
Example 14. Forwarding BSD syslog via TCP

This configuration sends logs in BSD format to the specified host via TCP port 1514.

nxlog.conf
<Extension _syslog>
    Module    xm_syslog
</Extension>

<Output out>
    Module    om_tcp
    Host      192.168.1.1:1514
    Exec      to_syslog_bsd();
</Output>
Example 15. Forwarding IETF syslog via TLS

With this configuration, NXLog Agent sends logs in IETF format to the specified host via port 6514.

nxlog.conf
<Extension _syslog>
    Module         xm_syslog
</Extension>

<Output out>
    Module         om_ssl
    Host           192.168.1.1:6514
    CAFile         %CERTDIR%/ca.pem
    CertFile       %CERTDIR%/client-cert.pem
    CertKeyFile    %CERTDIR%/client-key.pem
    OutputType     Syslog_TLS
    Exec           to_syslog_ietf();
</Output>
The OutputType Syslog_TLS directive is necessary if octet-framing is required. The name was chosen to refer to the octet-framing method described by RFC 5425.

Extending syslog

BSD syslog uses a free-form message field and does not provide a standard way to include key-value pairs in log messages. This section documents practices in implementing structured data using BSD syslog as transport.

IETF syslog Structured-Data

As documented above, the Structured-Data part of the IETF syslog format provides a syntax for key-value pairs.

Syslog example
<13>1 2016-10-13T14:23:11.000000-06:00 myserver - - - [NXLOG@14506 Purpose="test"] This is a test message.

NXLog Agent can parse IETF Syslog with the parse_syslog() procedure provided by the xm_syslog extension module.

Example 16. Parsing IETF syslog with structured-data

With this configuration, NXLog Agent parses the input IETF syslog format from a file, converts it to JSON, and outputs the result to a file.

nxlog.conf
<Extension _json>
    Module    xm_json
</Extension>

<Extension _syslog>
    Module    xm_syslog
</Extension>

<Input in>
    Module    im_file
    File      '/var/log/messages'
    Exec      parse_syslog();
</Input>

<Output out>
    Module    om_file
    File      '/var/log/json'
    Exec      to_json();
</Output>

<Route r>
    Path      in => out
</Route>
Output sample
{
  "EventReceivedTime": "2016-10-13 15:23:12",
  "SourceModuleName": "in",
  "SourceModuleType": "im_file",
  "SyslogFacilityValue": 1,
  "SyslogFacility": "USER",
  "SyslogSeverityValue": 5,
  "SyslogSeverity": "NOTICE",
  "SeverityValue": 2,
  "Severity": "INFO",
  "EventTime": "2016-10-13 15:23:11",
  "Hostname": "myserver",
  "Purpose": "test",
  "Message": "This is a test log message."
}

NXLog Agent can also generate IETF syslog with a Structured-Data part using the to_syslog_ietf() procedure provided by the xm_syslog extension module.

Example 17. Generating IETF syslog with structured-data

With the following configuration, NXLog Agent will parse the input JSON from a file, convert it to IETF syslog format and output the result to a file.

nxlog.conf
<Extension _json>
    Module    xm_json
</Extension>

<Extension _syslog>
    Module    xm_syslog
</Extension>

<Input in>
    Module    im_file
    File      '/var/log/json'
    Exec      parse_json();
</Input>

<Output out>
    Module    om_file
    File      '/var/log/ietf'
    Exec      to_syslog_ietf();
</Output>

<Route r>
    Path      in => out
</Route>
Input sample
{
  "EventTime": "2016-09-13 11:23:11",
  "Hostname": "myserver",
  "Purpose": "test",
  "Message": "This is a test log message."
}
Output sample
<13>1 2016-09-13T11:23:11.000000-05:00 myserver - - - [NXLOG@14506 EventReceivedTime="2016-09-13 11:23:12" SourceModuleName="in" SourceModuleType="im_file" Purpose="test] This is a test log message.

JSON over syslog

JSON has recently become popular for transferring structured data. For compatibility with syslog devices, it is common practice to encapsulate JSON in syslog. NXLog Agent can generate JSON with the to_json() procedure function provided by the xm_json extension module.

Example 18. Generating JSON with the syslog header

With the following configuration, NXLog Agent will read the Windows Event Log, convert it to JSON format, add a syslog header, and send the logs via UDP to a syslog agent. NXLog Agent log messages are also included (via the im_internal module).

nxlog.conf
<Extension _json>
    Module    xm_json
</Extension>

<Extension _syslog>
    Module    xm_syslog
</Extension>

<Input internal>
    Module    im_internal
</Input>

<Input eventlog>
    Module    im_msvistalog
</Input>

<Output out>
    Module    om_udp
    Host      192.168.1.1:514
    Exec      $Message = to_json(); to_syslog_bsd();
</Output>

<Route r>
    Path      internal, eventlog => out
</Route>
If syslog compatibility is not a concern, JSON can be transported without the syslog header (omit the to_syslog_bsd() procedure).

Other syslog extensions

See also these formats, which extend BSD syslog by using the free-form message field to contain key-value pairs.

Disclaimer

While we endeavor to keep the information in our guides up to date and correct, NXLog makes no representations or warranties of any kind, express or implied about the completeness, accuracy, reliability, suitability, or availability of the content represented here. We update our screenshots and instructions on a best-effort basis.

The accurateness of the content was tested and proved to be working in our lab environment at the time of the last revision with the following software versions:

NXLog Agent version 5.7.7898
Linux Mint 20.3 Una
Ubuntu 20.04 Focal Fossa

Last revision: 8 March 2023
